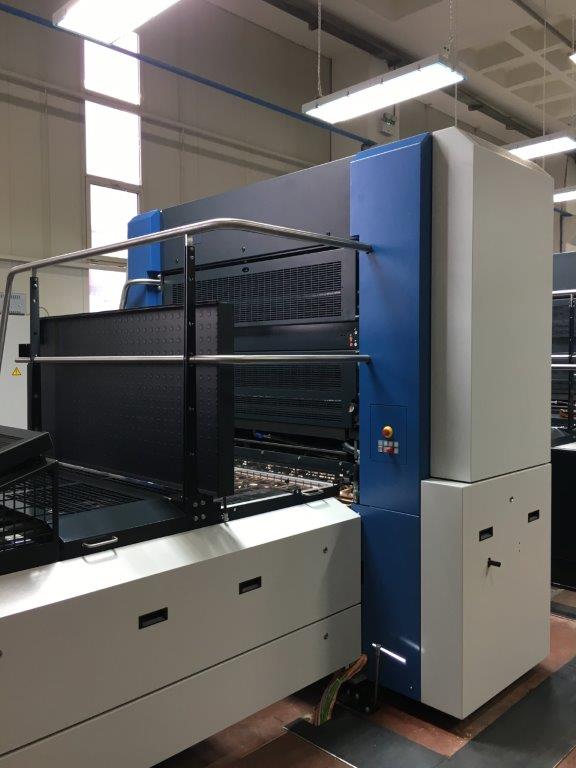

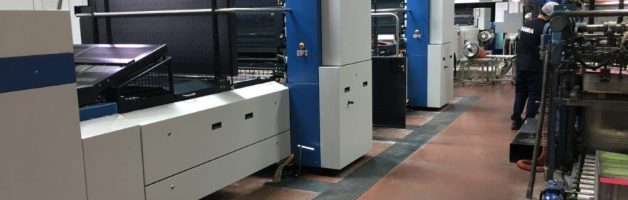

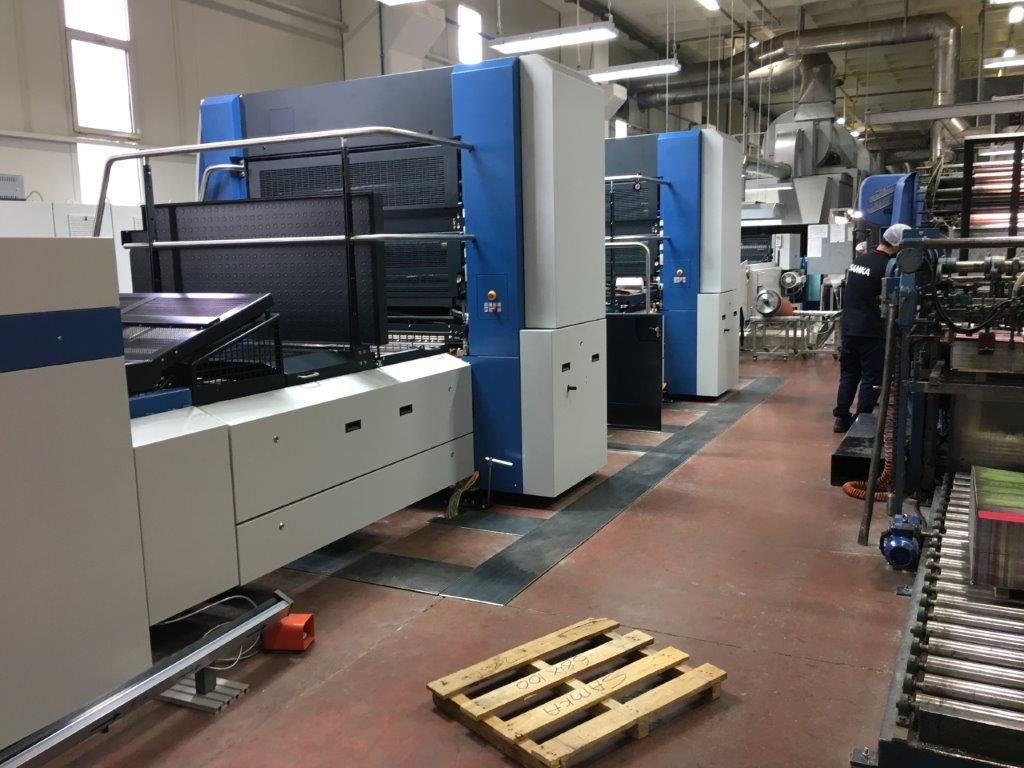

MAILÄNDER 280, 2-COLOUR PRINTING LINE
Printing press for the decoration of metal sheets, consisting of the following units:

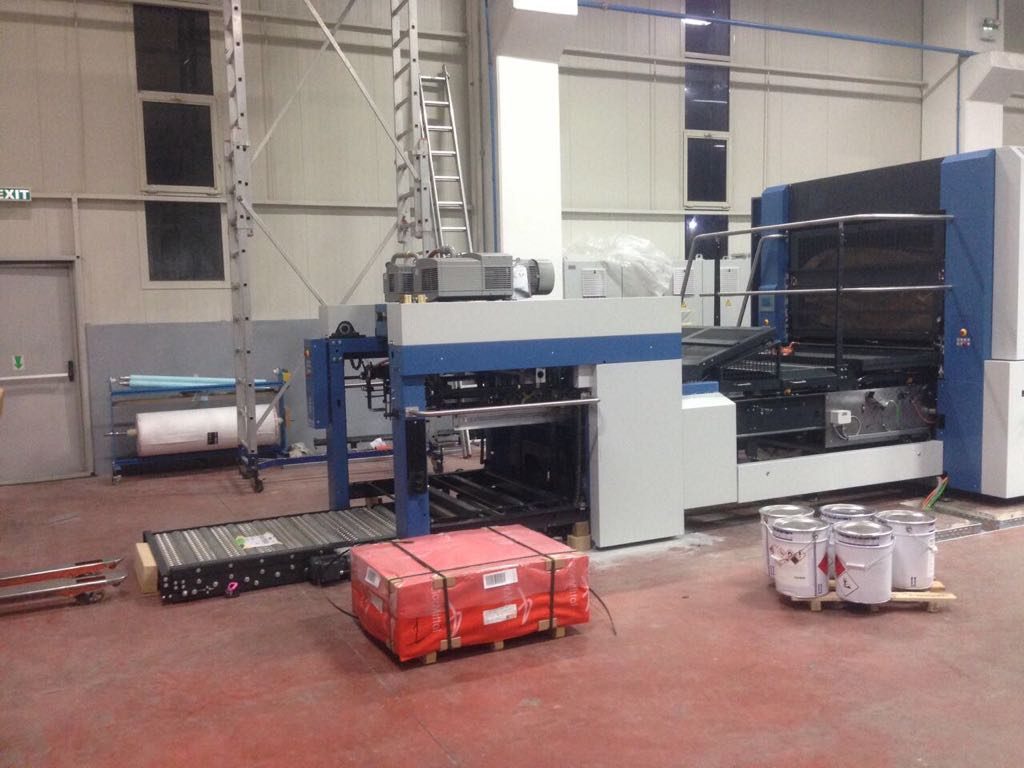

– Automatic Feeder 780 with motorised in-feed roller conveyor and electrical synchronisation to the Mailänder printing press

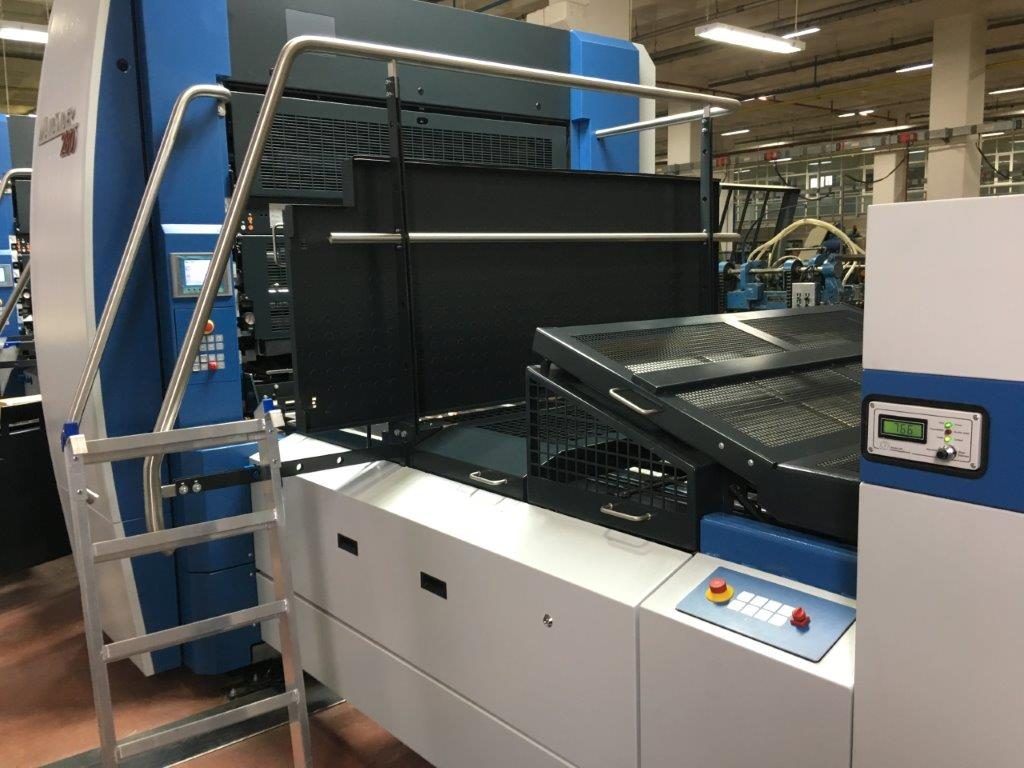

– 2-colour Metal Decorating Press, type Mailänder 280, for printing of metal sheets, including extras
Technical data of the Mailänder 280 printinq press
Maximum sheet size : 1,000 x 1,200 mm
Minimum sheet size : 510 x 710 mm
Sheet thickness : 0.16 – 0.40* mm
Sheet material : tinplate and ECCS (TFS) complying with EN 10202
Maximum print format : 995 x 1,200 mm
Plate size : 1,095 x 1,220 mm
Plate thickness : 0.4 mm
Gripper margin : 3 mm
Print start : 5 mm from edge of sheet
Blanket size : 1,220 x 1,275 x 1.95 mm
Production speed : 4,500 – 5,500 sheets/h, depending on quality, formaV thickness of sheets, printing inks, plates, blankets, etc.)
Maximum mechanical speed : 7,500 sheets/h
Maximum weight of feeder pile : 3,500 kg
Standard power supply : 3×400 V +/- 5° %, 50Hz
Relative humidity : 45…60%
Compressed air : 6 bar
Ambient temperature : max. 25°C (max. 40°C with cabinet climate control)
Installation altitude : max. 1,000 m above sea level
Remote maintenance : via internet connection
Machine control : Siemens “S7”
*Printability rs a/so influenced decisively by the flexural rigidity of the substrate.
